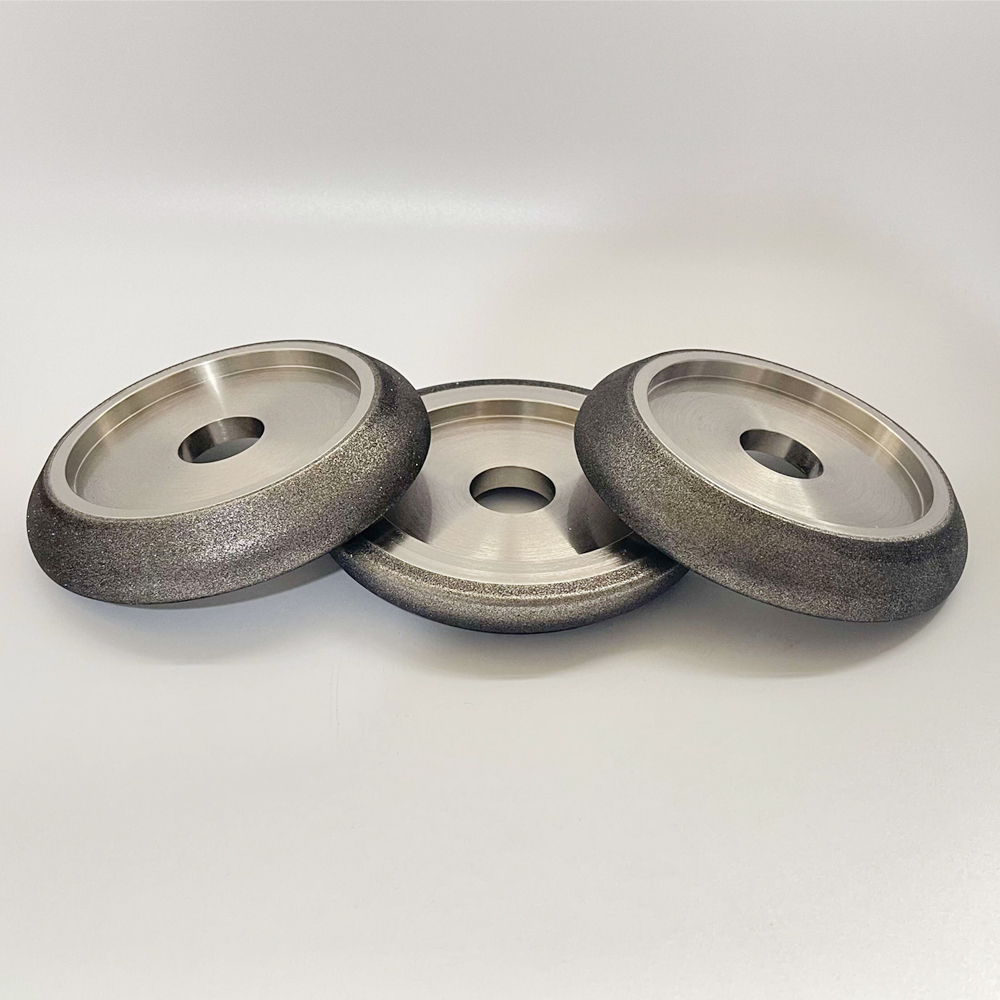

Electroplated Diamond CBN Wheels for Band Saw Blade Sharpening

Electroplated Diamond CBN grinding wheel are used for forming and grinding of band saw blades sawmill blade such as carbide teeth, high-speed steel teeth, carbon steel teeth, etc.
1. Fast grinding, high grinding effiency;
2. Long working life;
3. Excellent Teeth Grinding Finish;
4. Accurate Size and excellent processing efficiency;
5. Sizes can be custmozied.

Brief Introduction


1F1 Electroplated Diamond CBN Grinding Wheel for Band Saw Blade Sharpening Sawmill Blade CBN Sharpener Wheel
Abrasive: Diamond / CBN
Bond Type: Electroplated
Outer Diameter(D): 125/150/200mm
Height(T): 22mm
Inner Diameter(H): 12.7/20/32mm
Width(X):5mm
Angle: 10/30 9/29 13/29 4/32 7/34
Mesh: 120#  150# 180# 200#

Conventional size of grinding wheel:
125D*22.2T*12.7H
150D*22.2T*20H
200D*22.2T*32H

Features:
1. Fast grinding, high grinding effiency;
2. Long working life;
3. Excellent Teeth Grinding Finish;
4. Accurate Size and excellent processing efficiency;
5. Sizes can be custmozied.

Features of band saw wheels with different angles:
       10/30: Commonly used grinding wheel profiles, both softwood and hardwood band saws can be used;
       9/29: Band saw or hardwood band saw, used for winter wood cutting;
       13/29: Band saw or cork band saw, used for summer wood cutting;
       4/32: Used to cut the band saw into very hard wood;
       7/34: Band saw for hardwood cutting
