Metal Bond Diamond

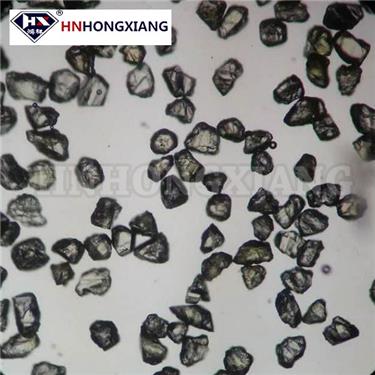

MBD diamonds are made from selected high-quality diamonds, which are manufactured through processes such as pressing, purifying, drying and selection. Compared with RVD, the crystal is regular, crystal plane is flat, high purity and good pressure resistance.

Brief Introduction

APPLICATION SCOPE

MBD diamonds are made from selected high-quality diamonds, which are manufactured through processes such as pressing, purifying, drying and selection. Compared with RVD, the crystal is regular, crystal plane is flat, high purity and good pressure resistance.

DETAILS

According to the different shapes and hardness of crystals, they can be divided into the following types,


MBD2

The crystal is relatively complete, the surface is smooth, and the compressive strength is low.

It is generally used in the production of cutting or polishing soft stone and brittle material processing tools. It can also be used in diamond correction tools.


MBD4

Crystal integrity, smooth crystal surface, low compressive strength

Tools for cutting or polishing soft stone and brittle materials can also be used in diamond correction knives.




MBD6

Crystal integrity, smooth surface, moderate compressive strength

It is generally used for raw materials such as soft and brittle marble stone cutting drilling tools, but it can not be used for the processing of reinforced concrete tools, it can also be used to make diamond correction tools.


MBD8

Crystal is complete, high purity, medium toughness, high thermal stability, strong impact resistance.

It is generally used for the production of medium-hard stone processing tools such as granite and marble.




MBD10

Crystals are complete, high purity, moderate and thermal stability, high impact resistance.

For marble, granite, tile and other stone cutting tools processing production.






MBD12

Crystal is complete, high purity, strong toughness, high thermal stability, strong impact resistance.

Generally used for manufacturing high hardness stone cutting tools, such as reinforced concrete saw blades, geological drills and so on.


SMD25

The crystal is very complete, is an octahedron, high purity, high compressive strength, high toughness, thermal stability, high impact resistance.

Generally used for manufacturing diamond tools with high hardness, such as diamond cutting wire saws, large stone diamond saws, etc.

Suitable for the manufacture of various reinforced concrete and engineering geological drilling tools. Various types of diamond modification tools.


SMD30

Crystal integrity, positive octahedron, high purity, high compressive strength, high toughness, superior thermal stability and impact resistance

Commonly used and manufactured cutting high hardness stone and reinforced concrete diamond tools, electroplating tools, diamond correction knives as well as engineering and geological drills.






Quality Inspection

TI impact toughness: Using the fixed impact number method, the sample is impacted for a certain number of times, then sieved, and the impact toughness is expressed in terms of the percentage of the uncrushed material.

Through the TI test, each batch of abrasive intensity and hardness is controlled within a narrow range, and the larger wave times are reduced to achieve consistent quality.

TTI thermal shock toughness: The pattern is first heated at 1100°C for 10 minutes, and then tested for impact toughness TI. The resulting value is the TTI value.

TTI's main test for heat resistance, thermal stability, is the ability of a crystal to retain its strength after high temperature processing.

Magnetic susceptibility X0: The magnetic susceptibility of diamond is determined by its internal metal impurities, showing a linear relationship. The lower the impurity content, the weaker the magnetism, the higher the strength, the better the crystal form, and the better the thermal stability.

 Hot Tags: metal bond diamond, China, manufacturers, suppliers, factory, wholesale, customized, price, quotaTion, in stock, made in China

Product Size

Grit

Mesh

Grit

Mesh

30/40

30#

140/170

140#

40/50

40#

170/200

170#

45/50

45#

200/230

200#

50/60

50#

230/270

230#

60/70

60#

270/325

270#

70/80

70#

325/400

325#

80/100

80#

400/500

400#

100/120

100#

500/600

500#

120/140

120#
